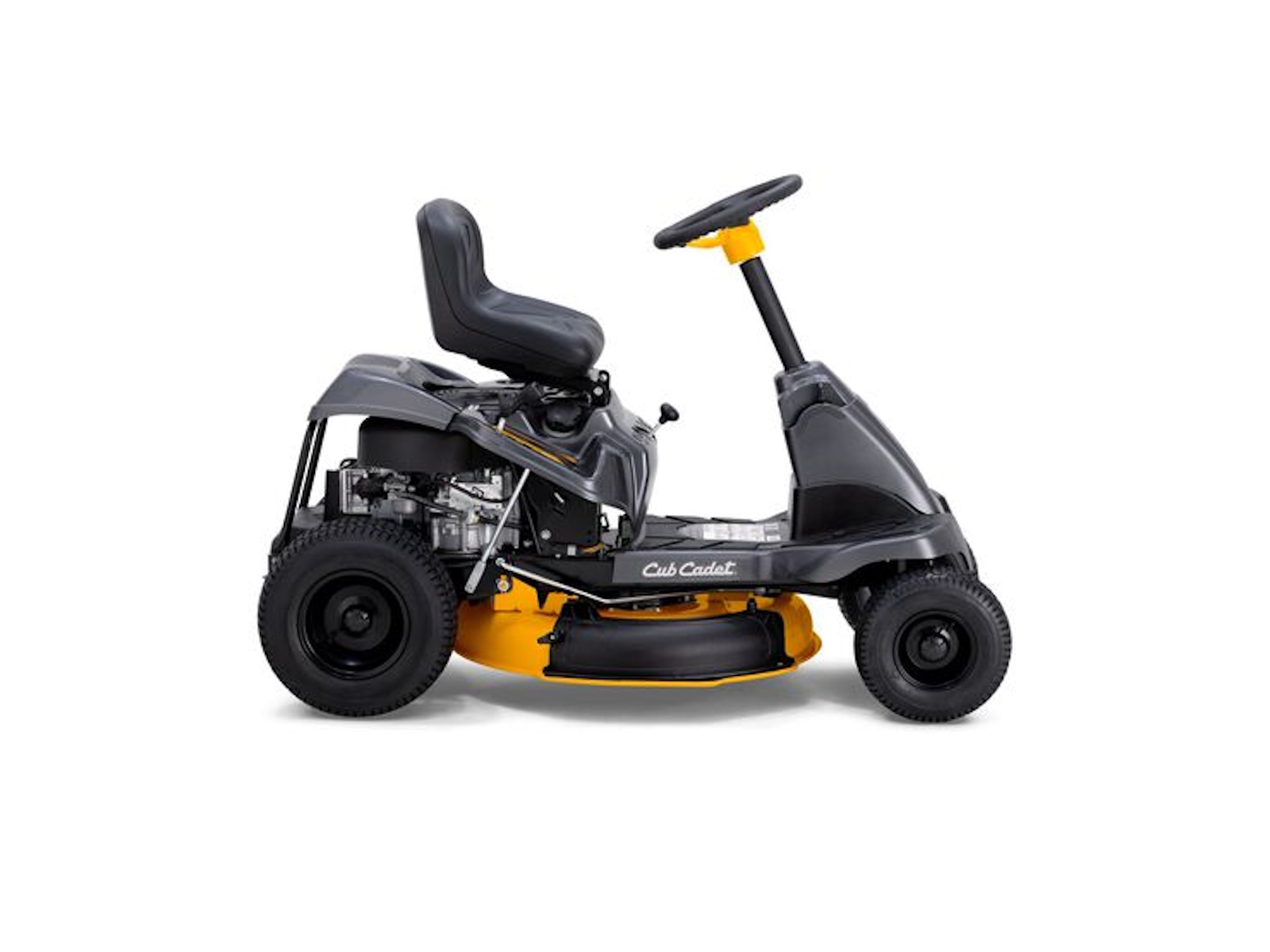

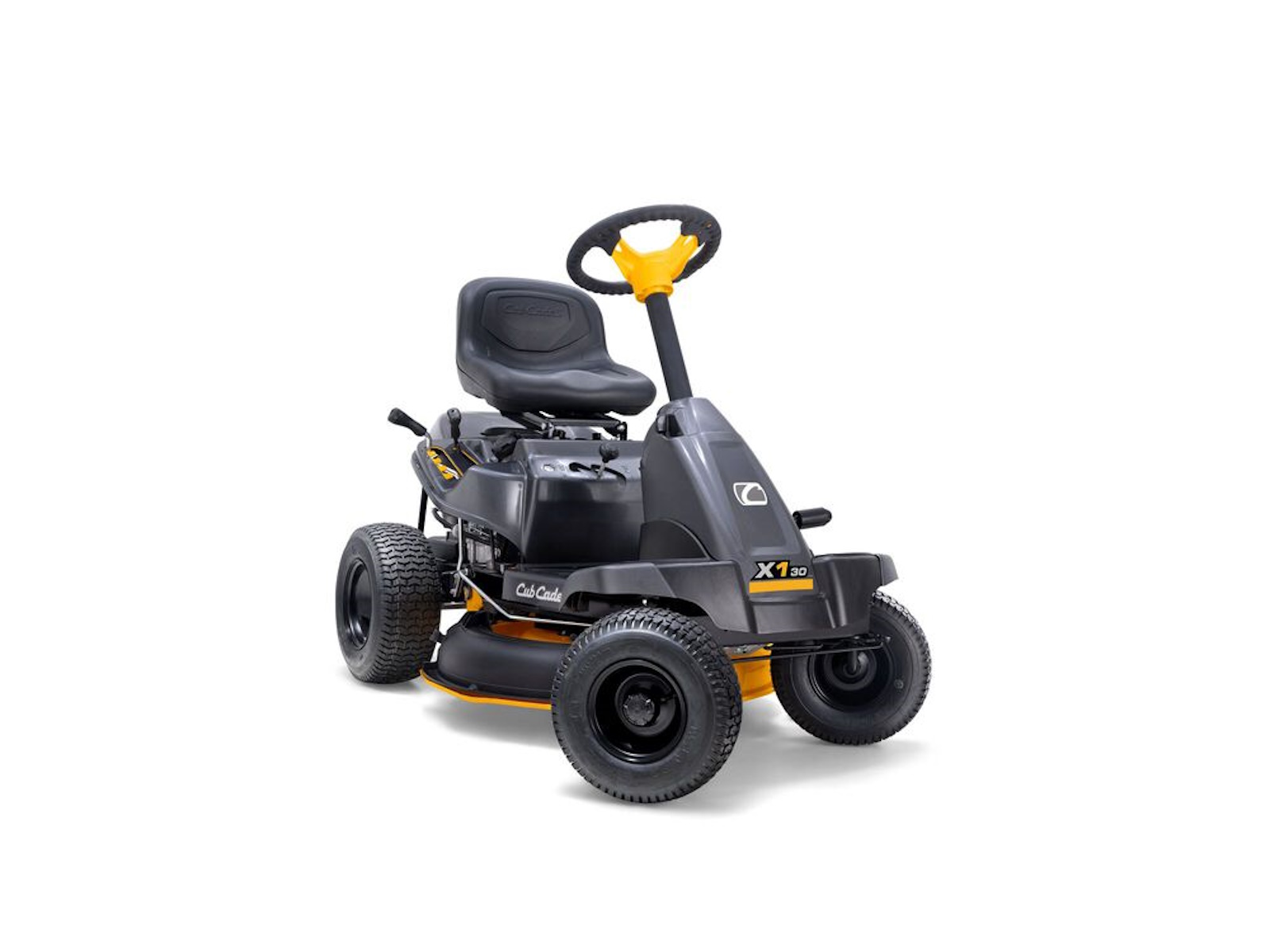

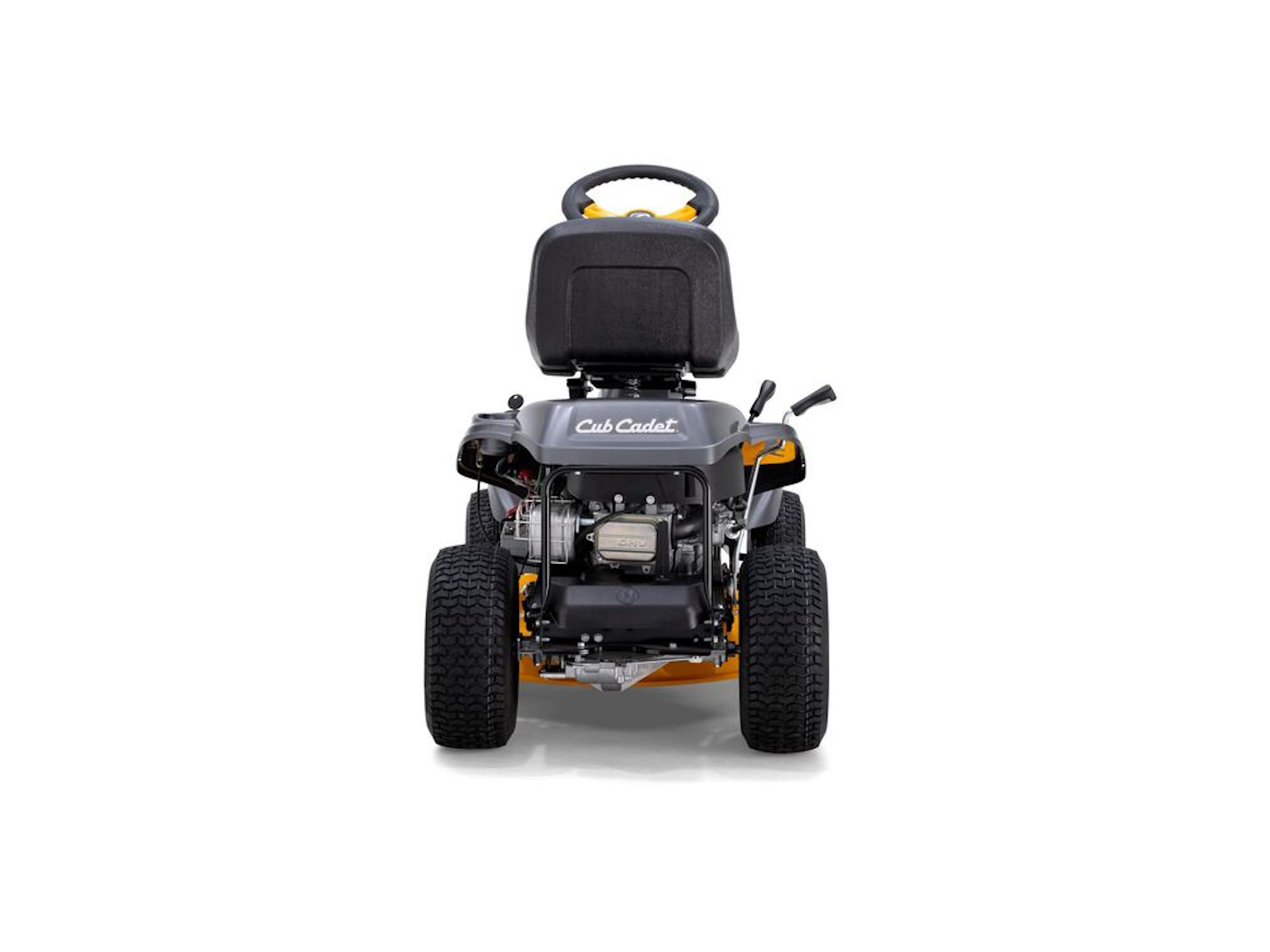

2027 Cub Cadet X1 30 Compact Riding Lawn Mower

2027 Cub Cadet X1 30 Compact Riding Lawn Mower

The Cub Cadet® X1™ 30 Compact Riding Lawn Mower has a powerful 10.5 HP* engine that delivers consistent performance. Redesigned with a bold aesthetic, this mower fits in tight spaces and can be easily stored. A 6-speed, Shift-on-the-Go™ transmission offers quick and convenient speed adjustments. The included mulch plug returns nutrients to the soil and helps prevent thatch buildup, keeping your lawn healthy.

• A 10.5 HP*/344cc Briggs & Stratton® engine is designed to deliver reliable power to tackle your yard.

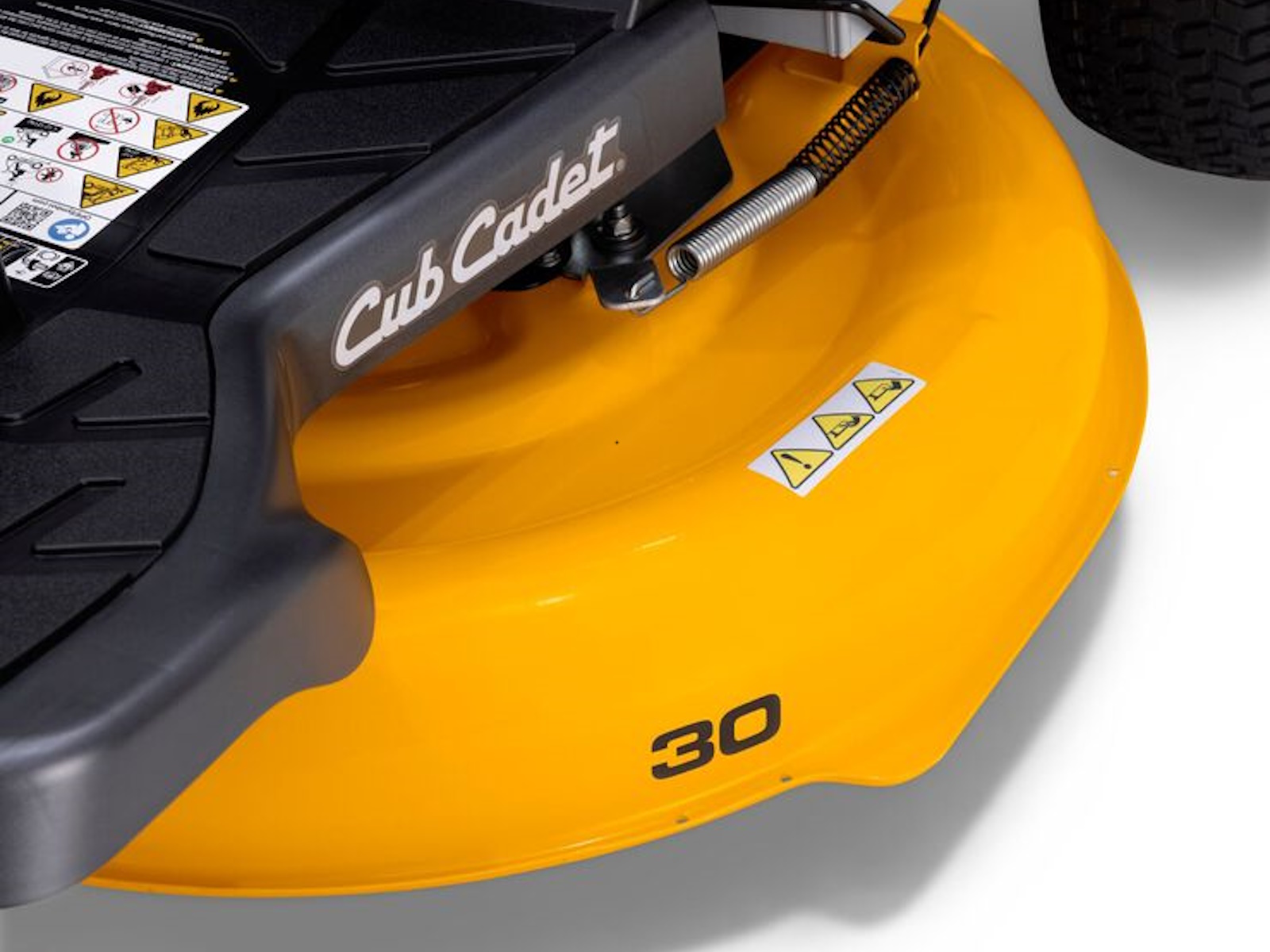

• A 30-in. side-discharge steel cutting deck is designed to fit through most gates up to 36-in. wide.

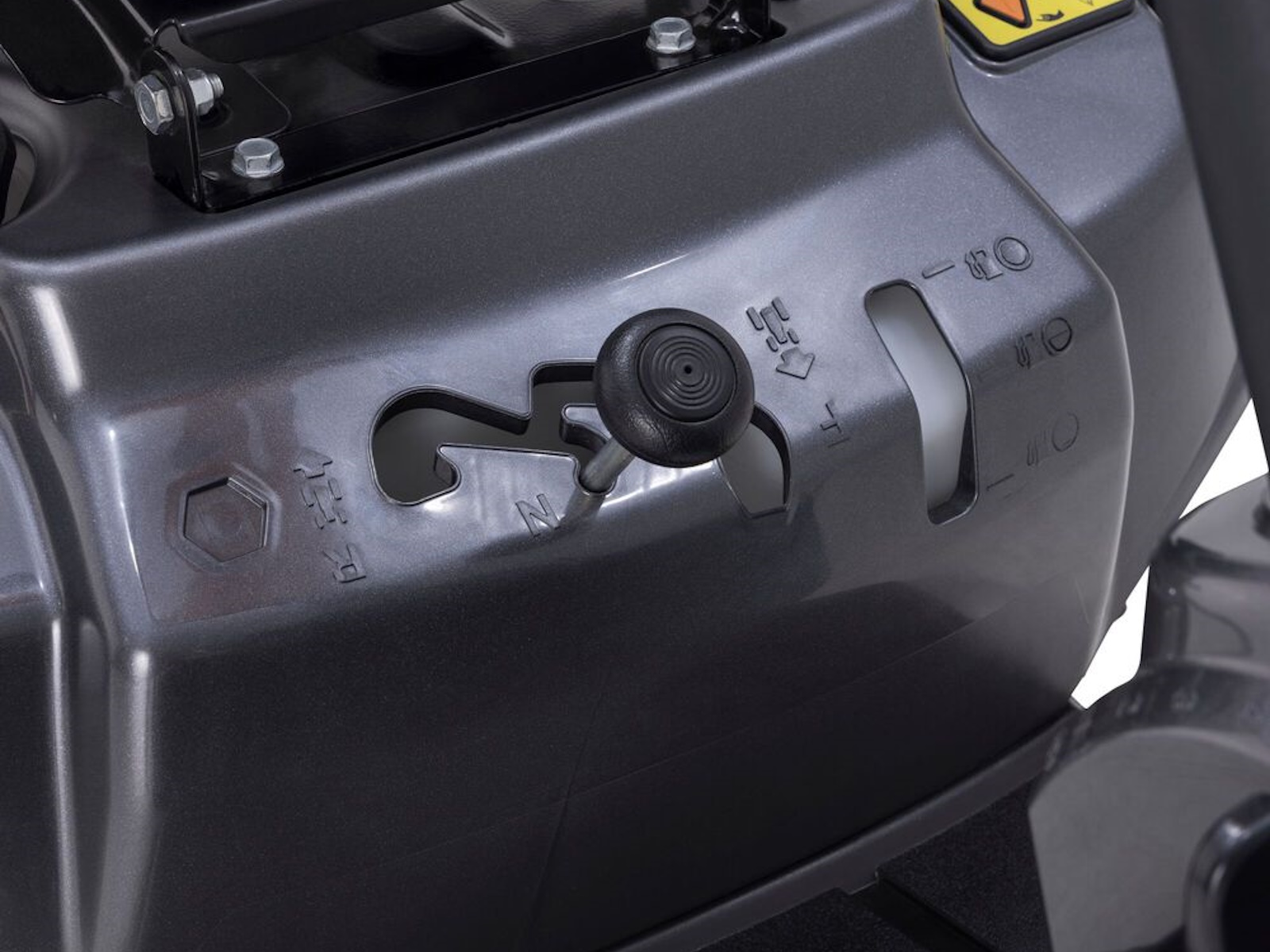

• 6-speed Shift-on-the-Go™ transmission has a dash panel control that is easy to see and adjust.
• Space-saving design makes the X1™ 30 riding mower easy to store in most garages and sheds.

Features May Include:

Options:

Engine

• Engine Brand: Briggs & Stratton®

• Engine Model: Powerbuilt

• Engine Model Number: 21R707-0152

• Engine Displacement: 344cc

• Engine Output: 10.5HP

• Starter Type: Electric

• Fuel Tank Capacity: 1.3 gal. US (4.92 L)

• Cylinders: Single

• Engine Start: Ignition Key

• Engine Oil Capacity: 1.5 qt. US (1.42 L)

• Lubrication: Fully pressurized

• Charging System: 3.75 amp regulated

• Fuel Gauge: No

• Governor: Mechanical

• Choke: Choke-a-matic

• Air Filter: Single element

• Oil Filter: No

• Fuel Delivery: Carburetor

Battery

• Battery: 230 CCA

• Battery Type: Lead Acid

• Battery Voltage: 12V

Drive System

• Transmission: Cub Cadet

• Forward Speed: 4.25 MPH / 6.7 km/h

• Reverse Speed: 2 MPH / 3.2 km/h

• Rear Axle: 3/4"

• Drive System: CVT

• Transmission Control: 6-Speed Hand Lever

• Transmission Housing: Aluminum

• Rear Differential Lock: No

Cutting Deck

• Deck Cutting Width: 30 in

• Deck Wash: Yes

• Deck Material: 14-gauge steel

• Deck Engagement (PTO): Manual

• Deck Construction: Stamped

• Blade(s): One

• Deck Lift: Manual

• Cutting Height Range: 1.5" - 4"

• Anti-Scalping: No

• Deck Positions: 5

Chassis

• Frame: Robotically welded

• Turning Radius: 18"

• Bumper: Steel tube

• Rear Tow Hitch: Yes

• Corrosion Protection: Yes

• Front Pivot Bar: 14-gauge steel

Controls

• Cruise Control: No

• Brakes: Disc

Comfort

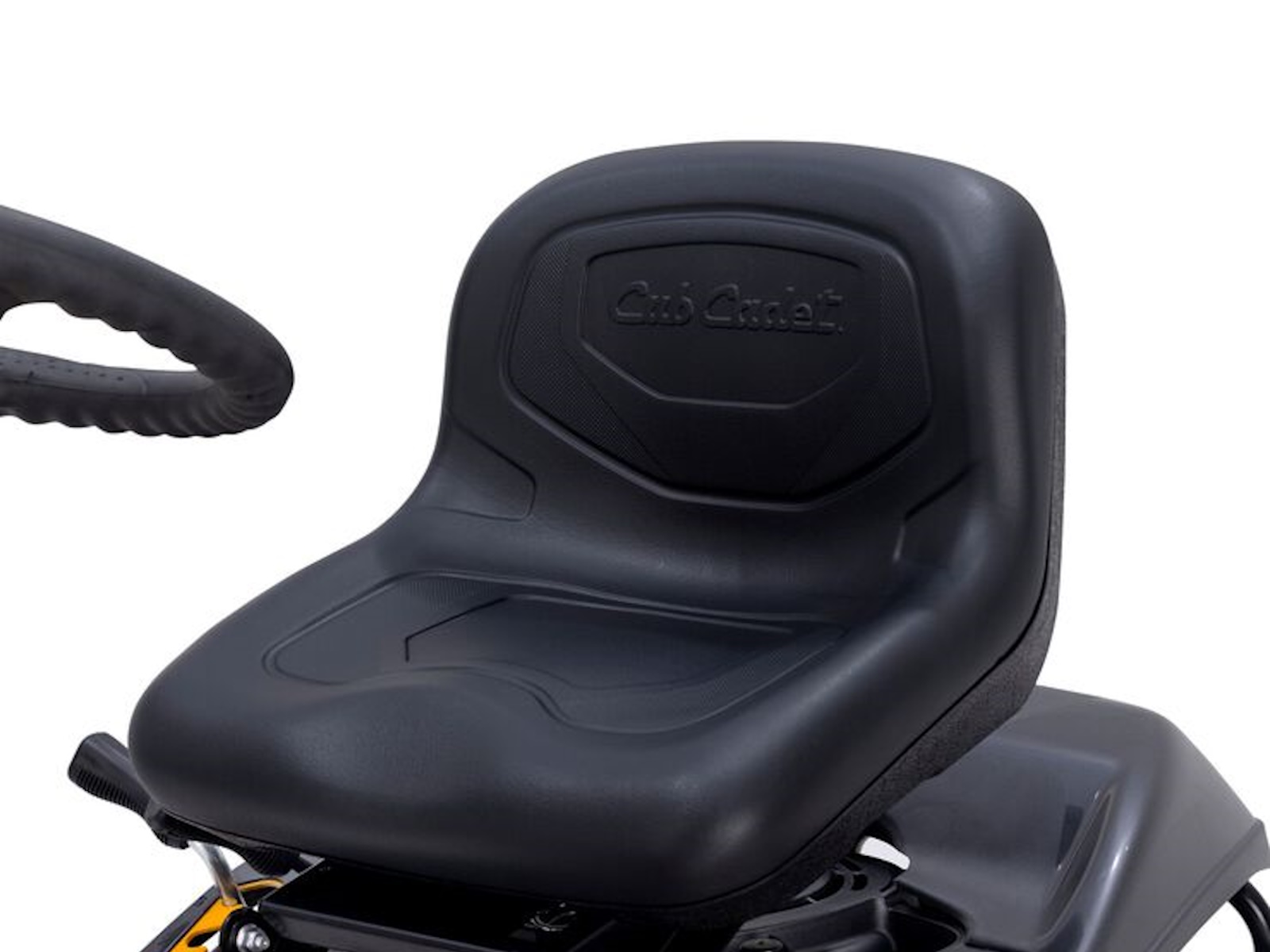

• Seat Type: Medium-back

• Armrests: No

• Seat Adjustment: Knob

• Floor Mats: Integrated

Wheels

• Bearing Type: Poly Bushing

• Rear Tires: 16"x 6.5"-8"

• Front Tires: 13"x 5"-6"

• Tire Tread: Turf Saver

Specifications

• Series: X1™ Series

Additional Specifications

• Hour Meter: No

• Mulch Kit: Included

• Headlight(s): No

• Cup Holder: Yes

• Operator Presence System: Yes

• Model Number: 13BC26JDA10

Warranty

• Residential Warranty: 3-year limited

• Frame Warranty: 3-year limited

• Front Axle Warranty: 3-year limited

• Deck Shell Warranty: 3-year limited

• Commercial Warranty: No
