2026 Exmark Radius E RDE691GKA54200 - 2351680226
Get in Touch
Description
2026 Exmark Radius E RDE691GKA54200
Radius E-Series with 23 HP* Kawasaki FR691 Engine and 54” Series 2+ Deck
Discover the Exmark Radius E-Series Mower
With the performance you expect from Exmark, new features and a fresh new look, the Radius E-Series is the right choice for home and acreage owners looking for a commercial-grade mower without breaking the bank. Choose from 48-, 54-, or 60-inch Exmark Series 2+ cutting decks and a wide range of available accessories for maximum versatility. And with new Kawasaki V-twin engine options, Radius E-Series models deliver more performance per dollar than ever before. Check out the Radius S-Series and Radius E-Series models if you’re looking for even more features and productivity. (RD models coming in 2026.)
Features may include:

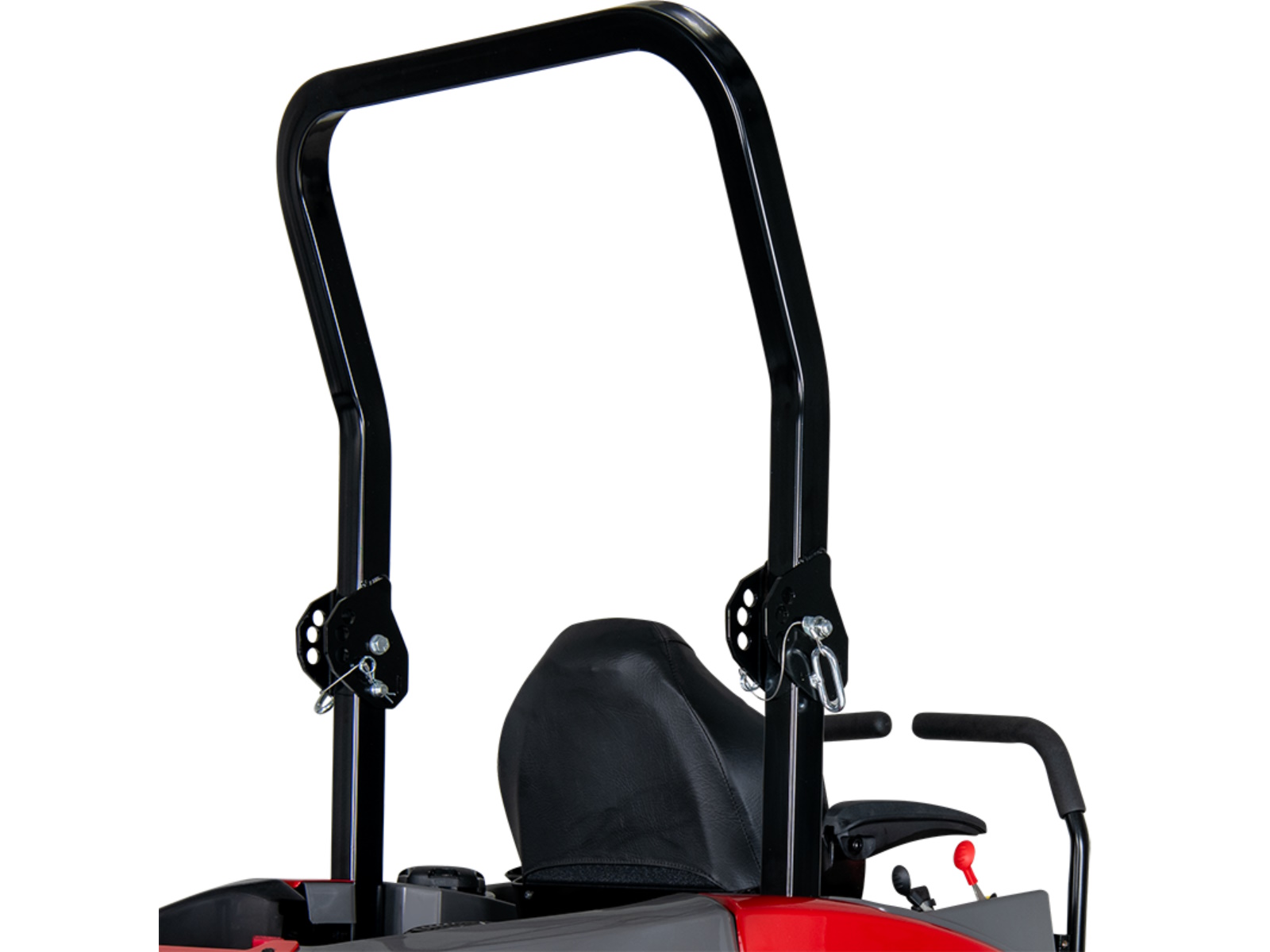

Adjustable Rollover Protection System (ROPS)
New square tubing rollover protection system (ROPS) is easily foldable for storage.

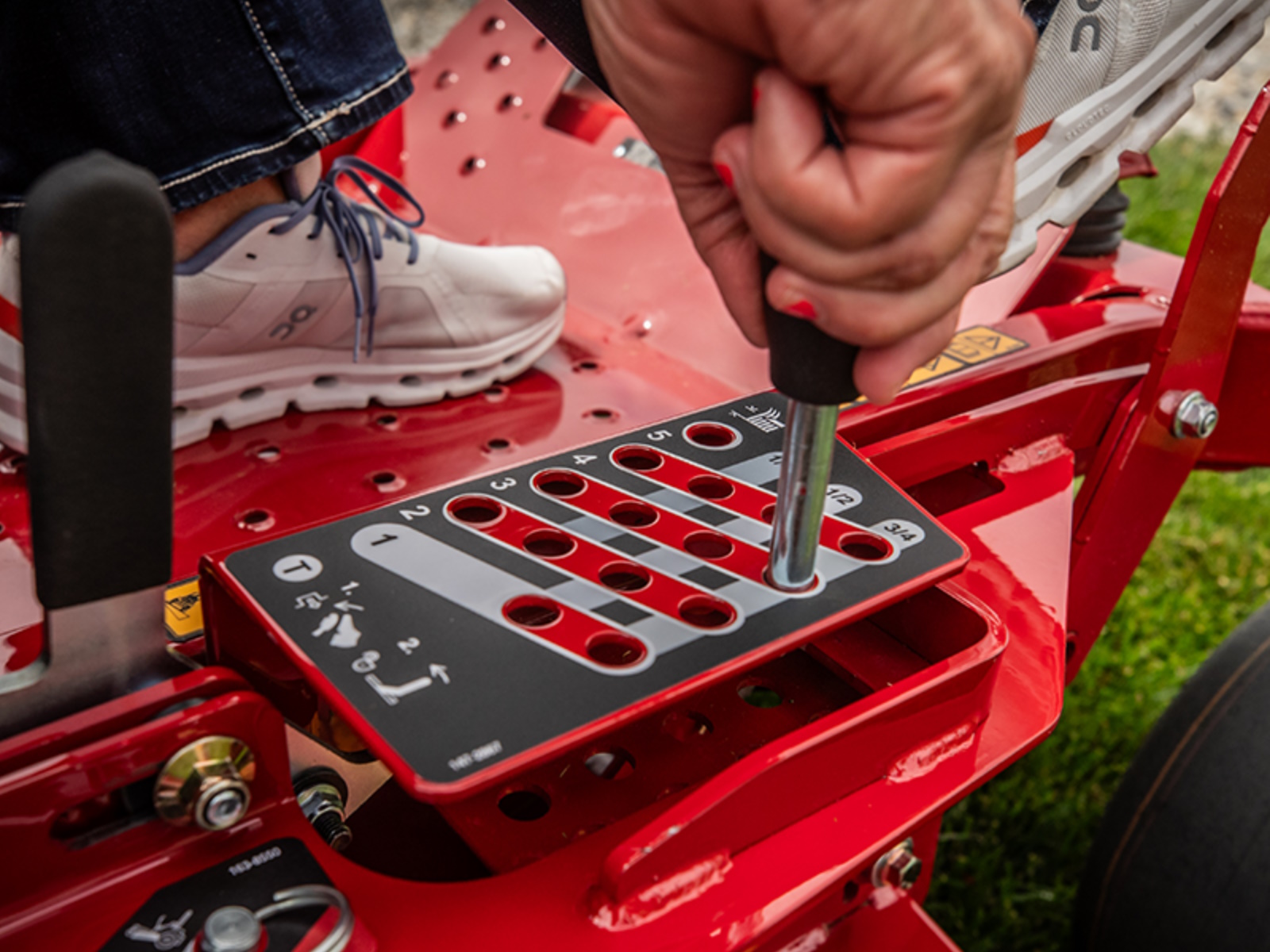

Height of Cut Made Easy
Exmark’s patented cut height adjustment system is very easy to use, enabling the user to quickly set height of cut with unmatched accuracy, right from the operator seat.
High-Strength Steel Frame
Fabricated and fully welded of high-strength rectangular steel tubing, the Radius frame places the heaviest components –– engine, transmission and fuel tank –– low and centralized in the frame. This lowers the machine’s center of gravity for increased traction and stability. New steel engine guards increase engine protection at the sides and rear of the machine, while also being easily removable for service access.

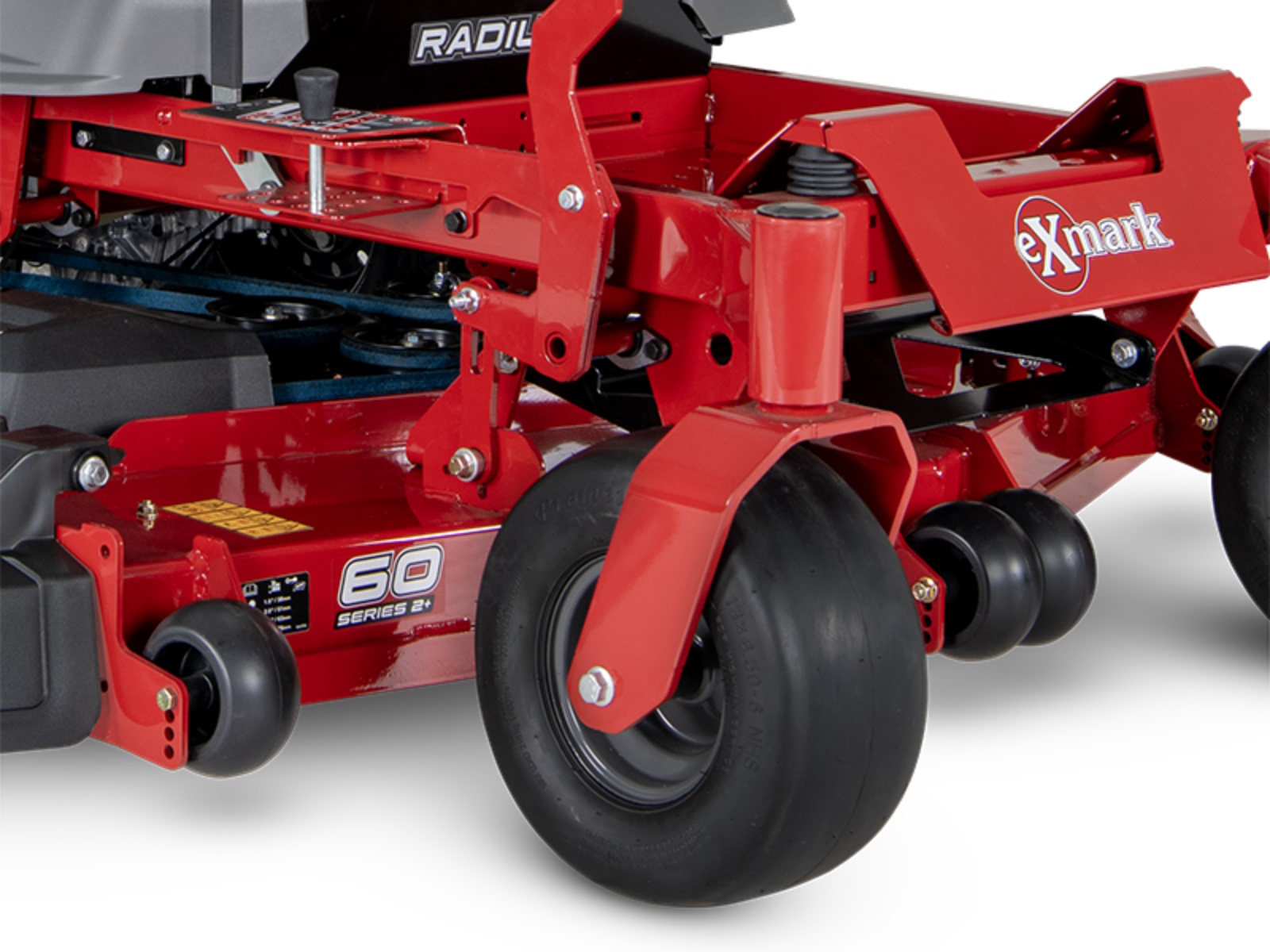

Series 2+ Cutting Deck
Fabricated and fully welded from high-strength steel, the Exmark Series 2+ cutting decks feature maintenance-free sealed bearing spindle assemblies and durable double-capture anti-scalp rollers to deliver the cut quality and durability you expect from Exmark.

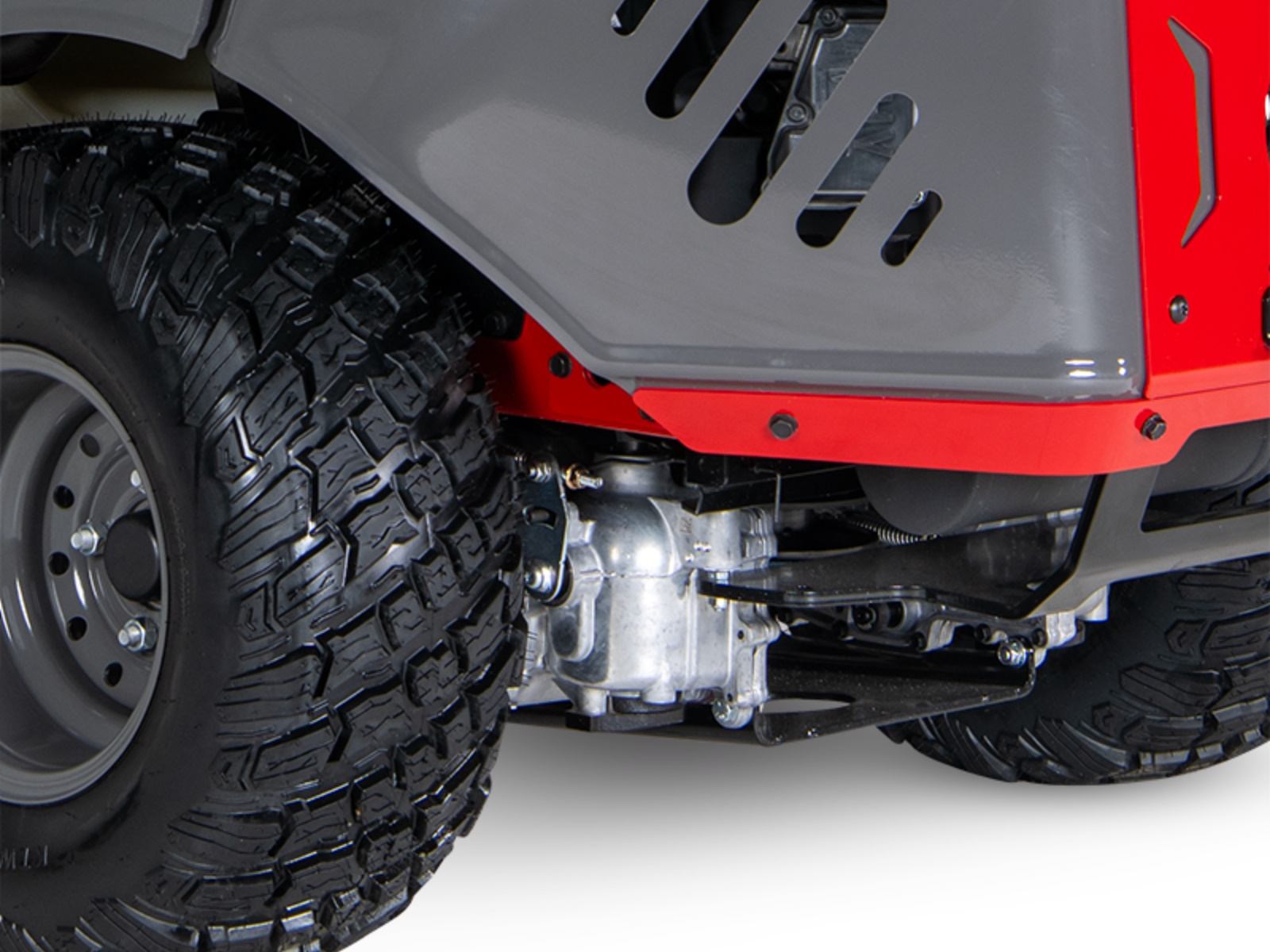

Integrated Hydro Pump and Motor Design
Dual HydroGear ZT-2800 hydro transmissions feature an integrated pump and motor design for maximum efficiency, long-term reliability and ground speeds of up to 8 mph.

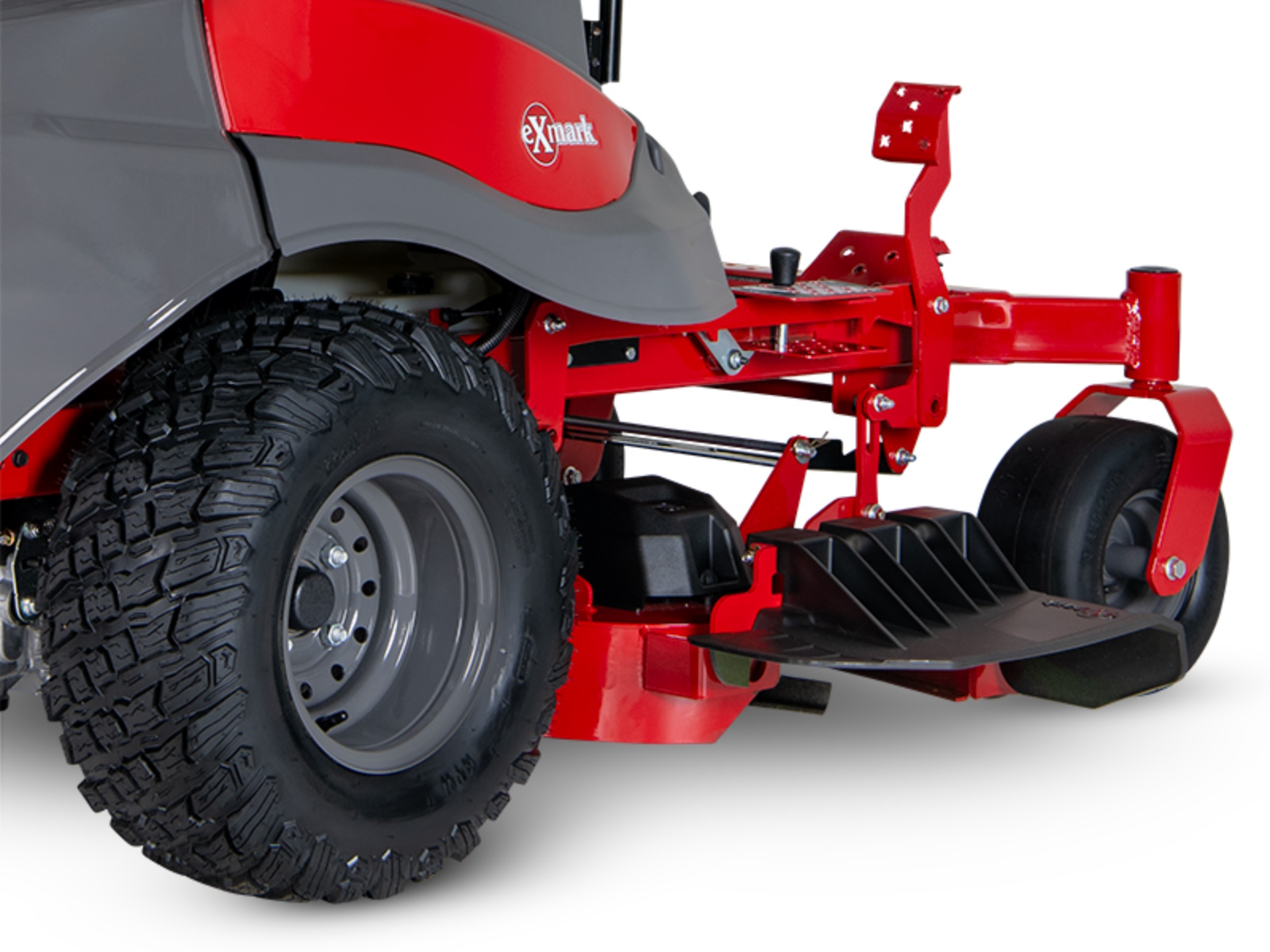

Large Drive and Caster Tires
Radius E-Series models are equipped with large, smooth-riding 22-inch drive tires and 13-inch caster tires.
Dealer Notes
Exmark RAIDUS E 54 KAWI FR691 23 HP ZT 2800 RDE691GKA54200
- UPC: 193308243757
- Width / Cutting Deck: 54 in.
- Drive: Hydro-Drive
- Starter: Electric
- Steering Control: Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment.
- Caster Forks: .375" thick caster yoke arms.
- Front Caster Tires: 13 x 6.5-5 smooth-tread, pneumatic.
- Drive Tires: 22 x 10-10 K3012
- Safety Package: Operator Presence Controls (OPC) and drive system interlock.
- Parking Brake: Automatic-actuated pawl brake.
- Tractor Frame: Unibody, welded, heavy-duty 1.5" x 3" tubular steel.
- Blade Spindles. No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft.
- Cup Holder: Yes
- Electrical: 12 volt battery with 15-amp alternator
- Standard Features: Hour meter, cup holder, hitch
- Seat: Deluxe, two-tone, bolstered seat with flip up armrests and integral safety switch
- Optional Features: Hour meter and seat armrests
- Engine Brand: Kawasaki
- Transmission Brand: Hydro-Gear
- Transmission Speeds: Infinitely Variable
- Engine Model: FR691
- Engine Displacement: 691 cc
- Engine Series: V-Twin
- Fuel System: Carbureted
- Speed: Infinitely variable speed selection from 0–8.0 mph forward, 0–4.0 mph reverse
- Transmission: Hydrostatic
- Engine Spec: AS43-R
- Engine Speed: 3,600 rpm
- Air Filter: Standard Engine Manufacturer's air filter
- Fuel Capacity: 7-gallon single fuel tank with single fill location
- Drive Description: Two Hydro-Gear ZT-2800 hydro static transmissions with no hoses and integrated cooling fans and integrated reservoir
- Fuel Type: Gas Carbureted
- PTO Engagement: Electromagnetic 105-ft-lb clutch
- Drive Wheel Release: Allows unit movement without engine running.
- Fuel Indicator: Float gauge
- Deck Lift: Foot pedal, single point drop pin HOC
- Carb Compliant: No
- ROPS: 2-post foldable ROPS standard with seat belt.
- Deck Style: Floating Deck
- Deck Style Description: Series 2 plus fabricated and welded steel deck. Decks have side discharge standard with the option ot bag or mulch.
- Deck Construction: 7-gauge top that is formed and welded, 12-gauge side skirt and .375" welded bumper. 4 point suspension.
- Cutting Heights: 1.5" to 5.0" in 0.25 increments
- Blade Tip Speed: Approximately 18,500 fpm
- Blades: 3 Blades at 18.75" Length
- Width: 66.5 in.
- Height: 73.7 in.
- Curb Weight: 826 lb.
- Length: 83.9 in.
Info
Industry
Power Equipment / Lawn
Make
Exmark
Model
Radius E RDE691GKA54200
Trim
Base
Year
2026
Msrp
6999.99
Price
6999.99
Stock Number
2351680226
Category
ZERO TURN
Subcategory
Other
Condition
New
Location
In Store
Fuel Type
N
Serial Number
420235168
Specifications
HorsePower
0.00
Width
66.5 in | Width / Cutting Deck 54 in
Height
73.7 in
Weight
Curb Weight: 826 lbs
Length
83.9 in
Deck Size
Deck Style: Floating Deck | Deck Construction: 7-gauge top that is formed and welded, 12-gauge side skirt and .375 in welded bumper. 4 point suspension. | Deck Style Description: Series 2 plus fabricated and welded steel deck. Decks have side discharge standard with the option ot bag or mulch. | Deck Lift: Foot pedal, single point drop pin HOC
Cutting Width
Cutting Width: 54 in | Cutting Heights: 1.5 in to 5.0 in in 0.25 increments
Blades
Blade Spindles: No maintenance, sealed and non-greasable spindles; 7.75 in-diameter cutter housing with 25mm (.98 in) diameter spindle shaft. | Blades: 3 Blades at 18.75 in Length | Blade Tip Speed Approximately: 18,500 fpm
Engine
Engine Spec: AS43-R | Brand: Kawasaki | Engine Model: FR691 | Engine Series: V-Twin
Transmission
Hydrostatic | Transmission Brand: Hydro-Gear | Transmission Speeds: Infinitely Variable
Engine Displacement
691 cc
Fuel Type
Gas Carbureted | Fuel System: Carbureted
Power
23 hp | Speed: Infinitely variable speed selection from 0–8.0 mph forward, 0–4.0 mph reverse
Fuel Capacity
7-gallon single fuel tank with single fill location | Fuel Indicator: Float gauge
Tires
Drive Tires: 22 x 10-10 K3012 | Front Caster Tires: 13 x 6.5-5 smooth-tread, pneumatic.
Family
Radius E-Series
RPM
Engine Speed: 3,600 rpm
